1992 IBM ThinkPad 700 Series

Background

The IBM ThinkPad 700 Series was a collection of notebook computers that were manufactured by the well-known technology company IBM and made their debut in 1992, arriving as the company’s delayed entry into a marketplace that was already densely populated with competitors such as Compaq’s LTE, Apple’s PowerBook 100 series, and Toshiba’s Dynabook. IBM had previously encountered challenges in gaining traction with earlier portable models, such as the L40SX and PS/2 Note, which were perceived as functional but ultimately unremarkable, lacking the design flair or user-centered innovations that would later come to define the ThinkPad brand. The 700 Series—comprising the 700, 700C, and 700T models—was developed under the expert guidance of industrial designer Richard Sapper, whose strong emphasis on minimalist aesthetics and practicality significantly shaped the iconic black, boxy design that bore a resemblance to a polished cigar case.

The series made its grand debut at the November 1992 Comdex tradeshow in the vibrant city of Las Vegas, where the 700C model, featuring its color display and TrackPoint pointing device, drew substantial attention, overshadowing the more traditional monochrome 700 and the innovative tablet-style 700T. The name “ThinkPad” itself was borrowed from IBM’s long-standing corporate tradition of distributing notepads emblazoned with the word “THINK” to its employees, a nod to the company’s enduring emphasis on problem-solving methodologies. While the 700T had been announced earlier in April 1992 as a pen-based tablet intended for niche professional use, the 700 and 700C models, which were released in October, were strategically positioned as mainstream business machines aimed at reclaiming IBM’s relevance in the rapidly evolving field of portable computing.

Features

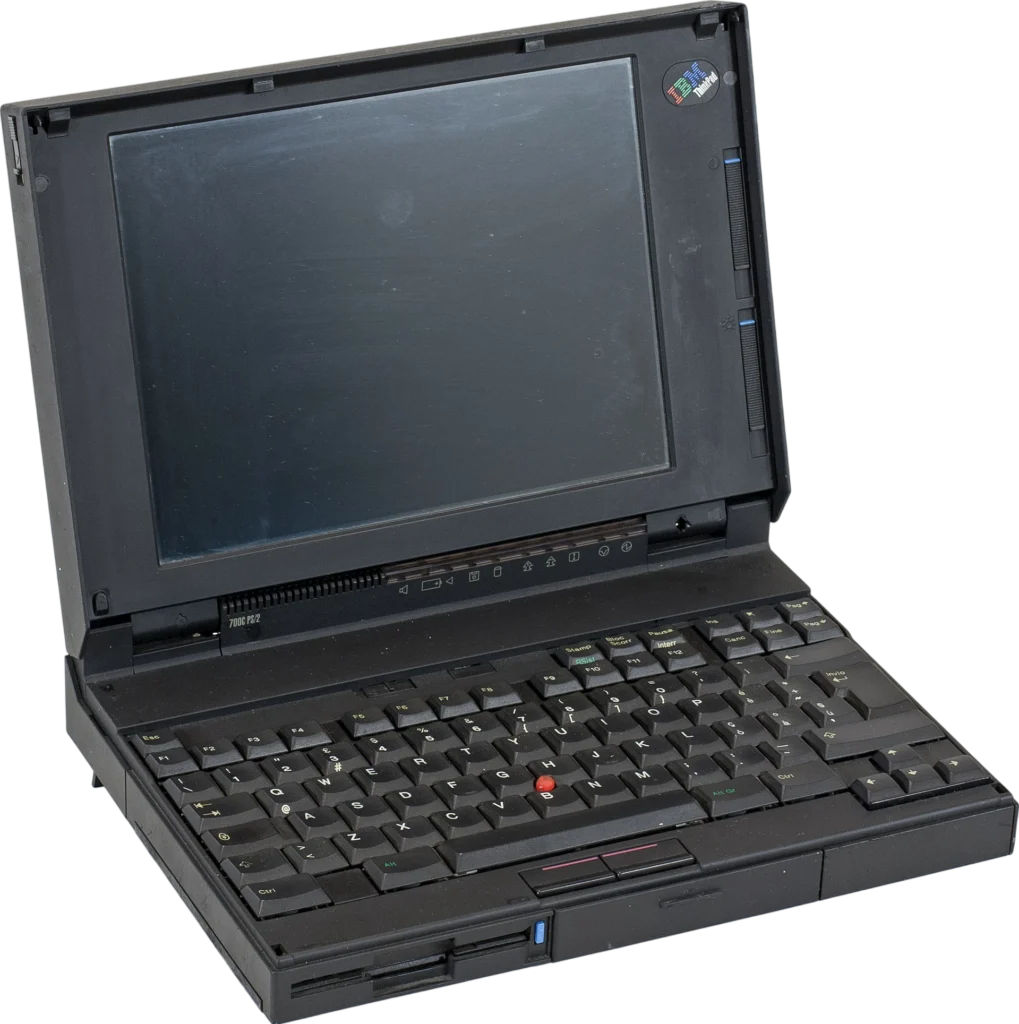

The 700 Series introduced a number of hardware and design elements that would eventually become recognized as ThinkPad hallmarks, including the 7-row keyboard layout, which achieved a balance between compact sizing and a typing experience that was much closer to that of full-sized desktop keyboards. The 700C, which served as the flagship model of the series, featured a 10.4-inch active-matrix TFT color display—a rarity at that particular time—paired with an IBM 486SLC processor operating at a speed of 25 MHz, expandable to 16MB of RAM, and a 120MB hard drive, which was considered quite spacious for laptops available in the early 90s. Its TrackPoint II, a small red rubber nub that was embedded in the keyboard, allowed for cursor control without necessitating the use of external mice or touchpads, a feature that polarized users but ultimately gained a devoted following among frequent travelers and touch-typists.

The 700T, which was marketed under the designation of IBM 2521, diverged from the traditional clamshell designs that were commonplace at the time with its unique slate-style form factor, relying on an electromagnetic pen for input and shipping with PenPoint OS, an operating system that was specifically optimized for stylus interaction. Despite its ruggedized construction and built-in modem, the 700T’s 20 MHz Intel 386SX processor and monochrome display felt underpowered in comparison to the more advanced 700C, which limited its appeal beyond specialized fields such as field research or data collection. All models in the series were criticized for their relatively short battery life—a common issue experienced in early laptops—and premium pricing, with the 700C starting at a hefty $4,350 (which is roughly equivalent to $9,700 in 2024) and the 700T priced at $4,795, putting them out of reach for the majority of consumers.

• 700C: 10.4″ color TFT, 486SLC CPU, 120MB HDD, TrackPoint II
• 700T: Slate design, PenPoint OS, 386SX CPU, electromagnetic pen
• Shared features: 7-row keyboard, modular floppy/CF card slots, rubberized black casing

Popularity and Legacy

While the 700 Series wasn’t an immediate commercial success or blockbuster, its thoughtful engineering choices and distinctive design language helped to establish a template for future ThinkPads, effectively positioning IBM as a serious player in the mobile computing landscape after several years of lagging behind its competitors. The 700C, in particular, received a number of positive reviews for its impressive display quality and comfortable keyboard, with some users even going so far as to compare its tactile feedback favorably with the layout of the PowerBook 100, though critics did note its considerable weight (which could reach up to 7.6 lbs) and its lackluster battery performance. The TrackPoint, despite facing initial skepticism from some users, ultimately became a defining feature of the brand, enduring through decades of subsequent models even as touchpads became increasingly common.

By the mid-90s, the ThinkPad line had successfully solidified its reputation for durability and innovation, with later models like the 720 and 750 introducing features such as built-in CD-ROM drives and magnesium alloy chassis. IBM’s decision in 2005 to sell its PC division to Lenovo marked a significant shift in ownership; however, the ThinkPad’s design ethos continued to persist under Lenovo’s stewardship, with modern iterations still echoing the utilitarian aesthetics established by the 700 Series. The impact of the 700C’s design can be observed in the ongoing use of black, rectangular chassis designs across a wide range of business laptops, serving as a subtle homage to Sapper’s visionary work.

Video Reviews and Commercials

The transcript discusses a ThinkPad laptop prototype’s design, where a glass display perfectly fit an April paper during an executive meeting. The speaker reflects on the device’s delicate nature and the assumption that expensive products would be handled carefully. Despite initial impressions, real-world experience showed users often damage such devices, challenging the original design expectations.

Availability and Collectability

Today, the 700 Series occupies a unique niche within the realm of vintage tech collecting, with the 700C and 700T models being particularly sought after due to their historical significance and limited production numbers. Functional units rarely surface on auction sites such as eBay, often priced between $500 and $2,000 depending on their condition, though non-working “for parts” listings are more common, typically selling for under $300. The 700T’s PenPoint OS and specialized hardware contribute to its status as a rare find, appealing to collectors who have a keen interest in early mobile computing experiments, while the 700C is highly prized for its influential role in popularizing color displays within the realm of business laptops.

Restoration challenges, such as the difficulty of sourcing replacement parts for proprietary components or reviving degraded hard drives, significantly limit the accessibility of these devices for casual hobbyists. Enthusiast communities, including forums like ThinkWiki and dedicated YouTube channels, provide valuable resources for troubleshooting and preservation, thereby ensuring that surviving units continue to remain operational. Unlike the mass-produced consumer electronics of the era, the 700 Series’ exceptional build quality—such as its reinforced hinges and magnesium alloy internal frame—has allowed many units to outlast their expected lifespan, which serves as a testament to IBM’s engineering priorities during the formative early days of mobile computing.
