1984 IBM 5170 PC AT

Background

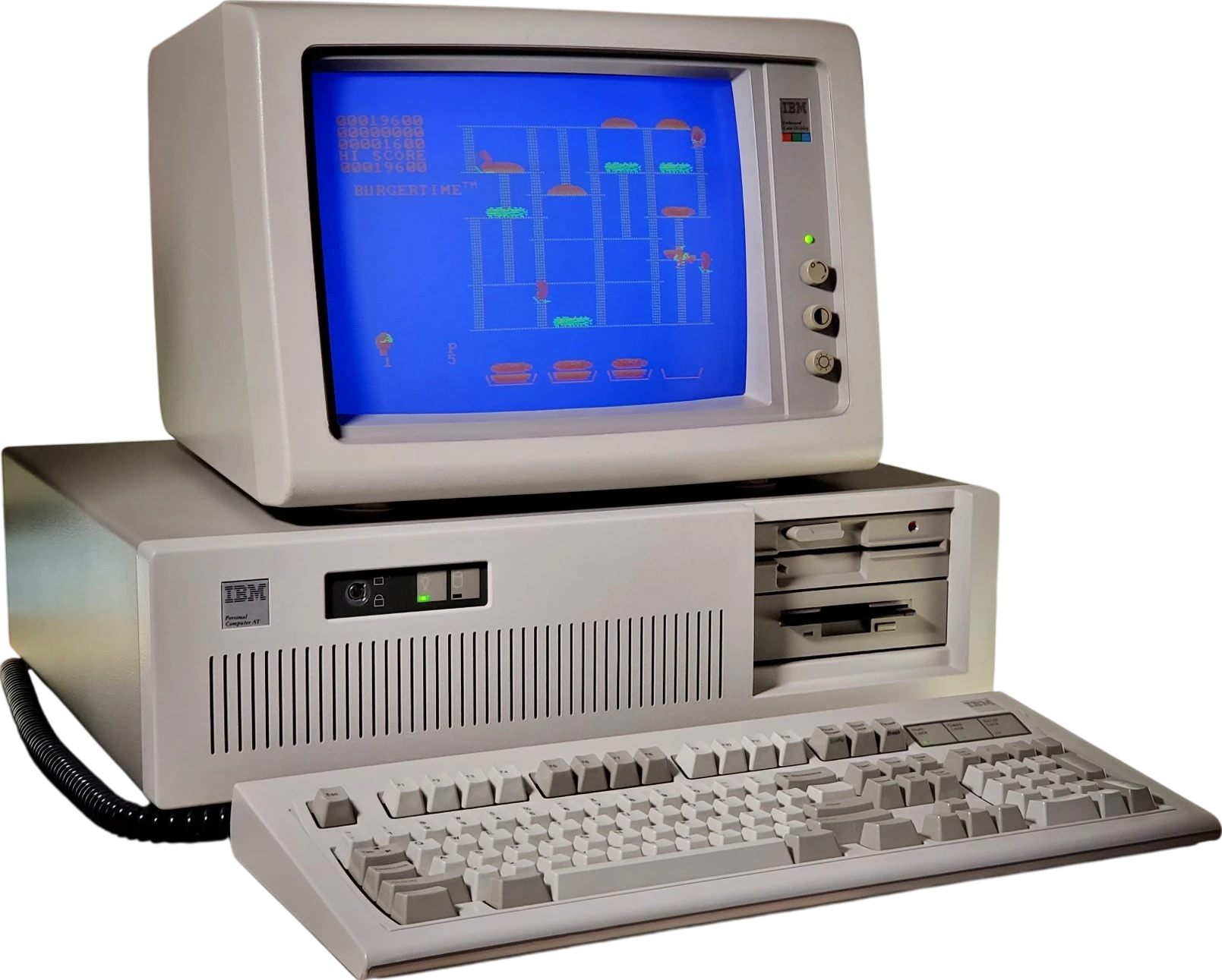

The IBM 5170 PC AT was a personal computer that was manufactured by the well-known company IBM and was officially released in 1984, specifically positioned as the successor to the earlier models known as the PC and PC XT. It came into existence three years after IBM’s first desktop computer, adopting the Intel 80286 processor—a significant upgrade from the 8088 that was utilized in prior models—and operating at a speed of 6 MHz. The designation AT, which stood for Advanced Technology, was marketed as a high-end machine that was specifically designed for business users, with a base model beginning at a price of $3,995 and a configuration featuring a 30MB hard drive that was priced at $5,995, which is equivalent to approximately $18,900 when adjusted for inflation in 2024.

In contrast to the later IBM systems that leaned toward proprietary designs, the 5170 retained an open architecture, thereby allowing for the integration of third-party hardware expansions. This openness made it a template for clone manufacturers, although it would ultimately be IBM’s last significant effort to establish an industry standard before clones overtook the market. The system’s 192-watt switching power supply, which was a technical necessity for its various components, required a minimum load to function correctly—a quirk that sometimes caused issues if expansion cards were not installed properly.

Features

The PC AT introduced a variety of hardware advancements that subsequently trickled into the wider PC ecosystem. Its 80286 CPU enabled 16-bit data processing and allowed access to an impressive maximum of up to 16MB of RAM, although most units that were shipped came with either 256KB or 512KB. The 1.2MB 5.25-inch floppy drive, which doubled the storage capacity of the older 360KB drives, became a defining feature, although it struggled to read disks from earlier systems without requiring some adjustments. A redesigned keyboard—the Model F—added function keys, a numeric keypad, and a sturdier layout that significantly influenced later keyboard designs.

• 16-bit Industry Standard Architecture (ISA) slots for expansion cards, facilitating upgrades
• MS-DOS 3.0, which provided support for file sharing and larger storage volumes
• Optional hard drive configurations of either 20MB or 30MB, representing a leap from the XT’s 10MB
• Incorporation of a real-time clock and CMOS memory for storing BIOS settings

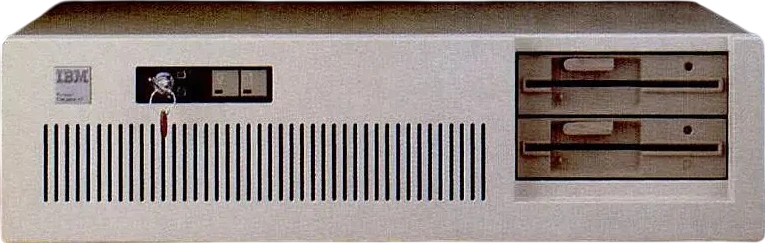

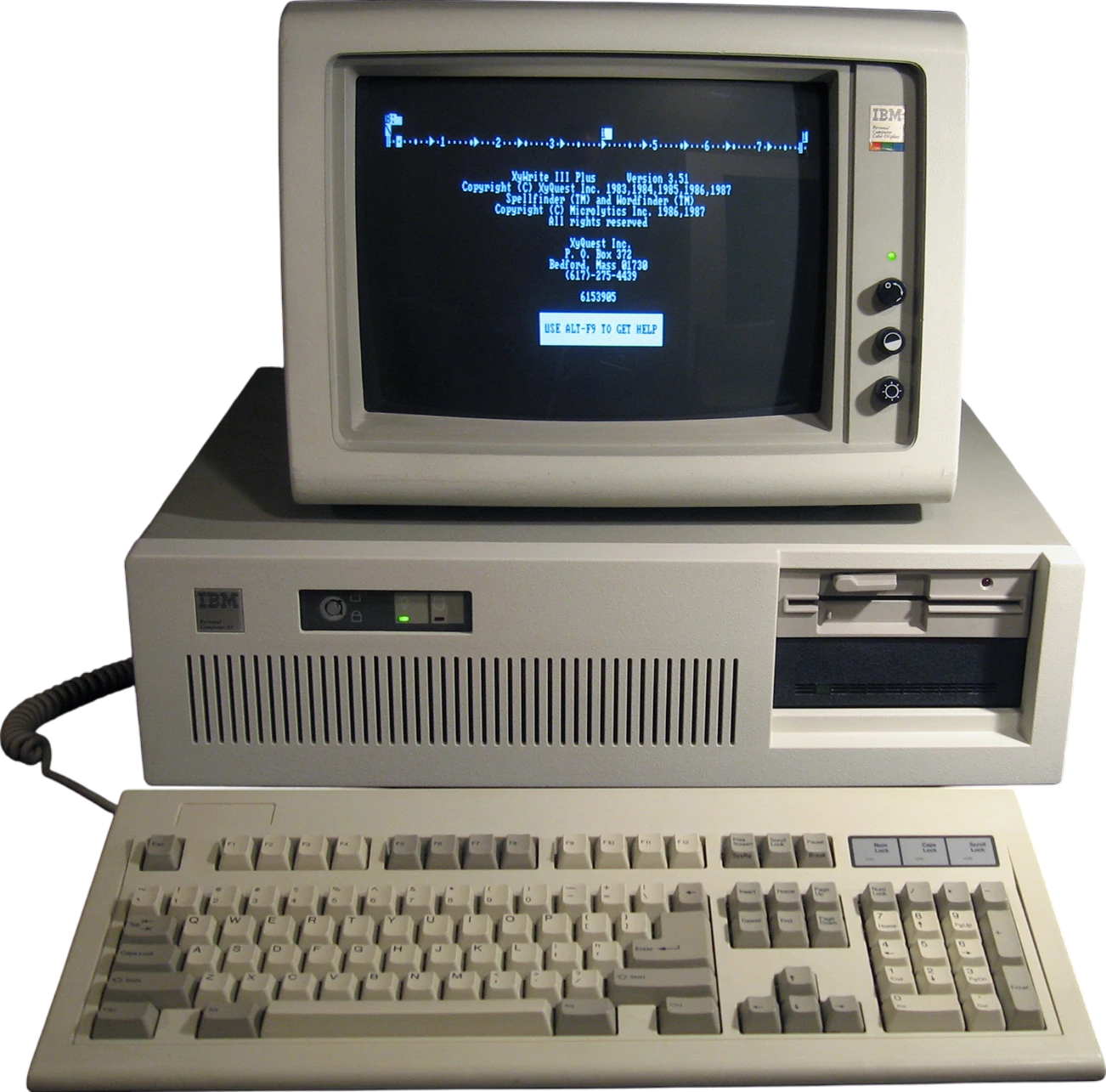

Two primary models were made available at launch. Model 1 included dual floppy drives and came with 256KB of RAM, while Model 2 substituted one of the floppy drives for a hard drive and doubled the RAM capacity. Later revisions increased the CPU speed to 8 MHz and added the Model M keyboard, but these changes arrived at a time when competitors such as Compaq began to outpace IBM with their faster 80386-based systems.

Popularity and Legacy

The PC AT dominated the high-end market from 1984 until 1987, despite its premium pricing that was considered quite high. Businesses favored its reliability and the strong brand reputation associated with IBM, even as clone makers began to undercut its cost. The term “AT-compatible” entered the lexicon of the industry, describing systems that emulated its BIOS, expansion slots, and drive configurations. However, the limitations of the 80286 in protected mode—a feature that was rarely leveraged by software at that time—left some users questioning its overall value in comparison to cheaper alternatives that were emerging.

IBM’s grip on the market began to loosen as clones adopted newer processors and undercut pricing significantly. The legacy of the 5170 lies in its role in cementing 16-bit computing as a standard, although its successors, such as the PS/2 line, failed to replicate the same level of influence. Critics argue that its true impact was somewhat unintentional—by leaving the architecture open, IBM allowed competitors to refine and iterate upon it, thereby accelerating the PC clone boom that characterized the late 1980s.

Video Reviews and Commercials

The IBM AT was a powerful microcomputer introduced to compete in the microcomputer market. It featured Intel’s faster microprocessor, could address up to 8MB of memory, and had a 16-bit data bus. It included innovations like a battery-backed CMOS, high-density floppy drive, and enhanced graphics adapter, positioning it as a significant advancement over previous IBM models.

Availability and Collectability

When it was newly introduced to the market, the PC AT was a niche product due to its high cost, with units primarily being sold to corporations and various institutions. Today, the surviving models are highly sought after by retro computing enthusiasts, although their collectability is heavily contingent on their overall condition and completeness. Systems that include original hard drives, keyboards, and accompanying documentation tend to fetch higher prices, typically ranging from $200 to $1,500 depending on their functionality and condition. The Model F keyboard, in particular, is especially prized for its mechanical switches, often selling separately for more than $150.

Challenges related to restoration include sourcing period-accurate components, such as the YD-380 floppy drive or functional hard drives, which are unfortunately prone to failure after decades of use. Emulation and FPGA recreations have significantly reduced demand for original hardware; however, the 5170 continues to remain a common sight within vintage computing communities. Its historical significance—as both a technological stepping stone and a cautionary tale regarding open standards—ensures that it remains an engaging topic of discussion among tech historians, even as fewer functional units exist in the market.

While it may not be as iconic as the original IBM PC, the 5170 occupies a unique middle ground between being a novelty and being a historical artifact. Its value lies less in its performance—given that modern microcontrollers vastly outpace its 80286 processor—and more in its function as a bridge between the early era of personal computing and the standardized, clone-driven market that followed in its wake.
