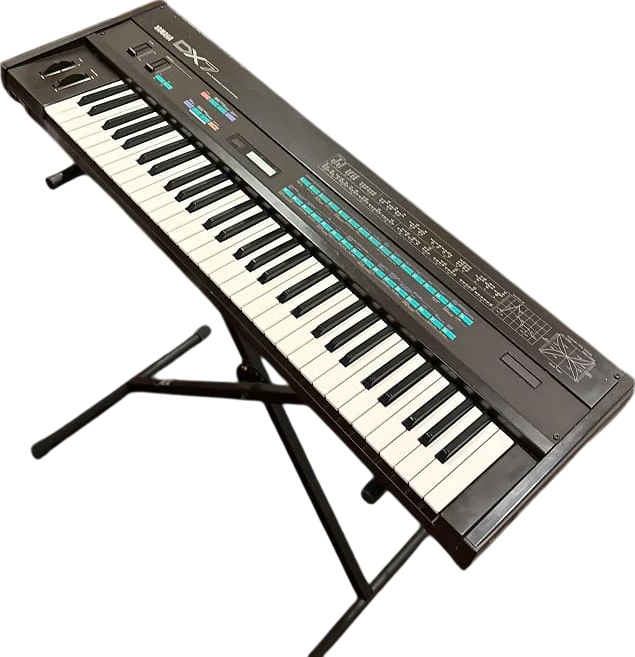

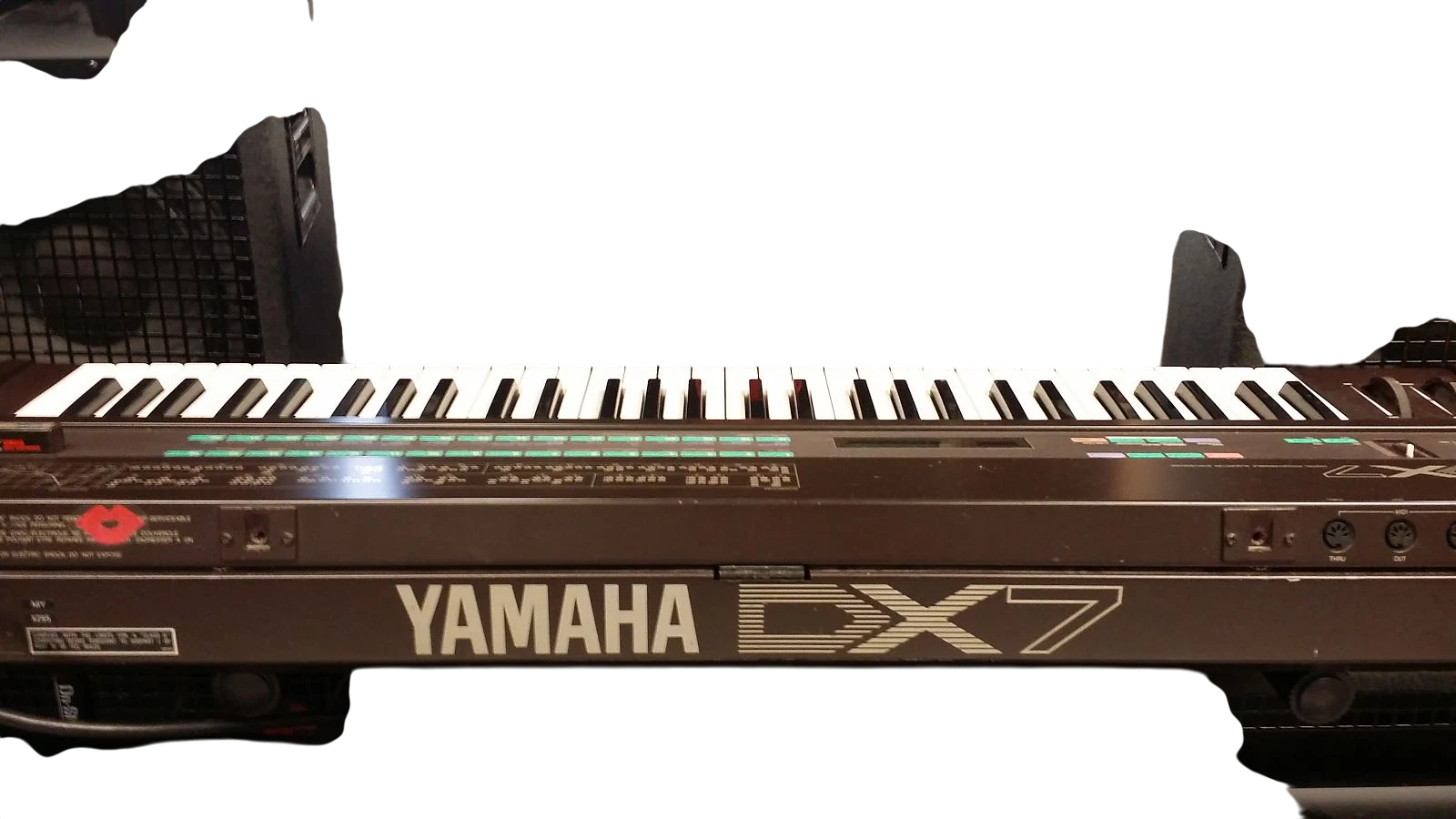

1983 Yamaha DX7 Synthesizer

Background

The Yamaha DX7 Synthesizer came into existence as a digital FM synthesizer that was manufactured by the renowned company Yamaha and officially released in the year 1983, arriving at a crucial moment when analog synthesizers were the predominant force in music production, with their physical knobs and sliders providing musicians with hands-on control but often leading to inconsistent sound replication. The design team at Yamaha took an altogether different path, stripping away the familiar analog interface in favor of switch-based digital controls—a move that, at first, left many musicians bewildered as they were accustomed to twisting physical dials for sound manipulation. This significant shift was not merely about aesthetics; rather, it was deeply rooted in the technical demands of frequency modulation (FM) synthesis, a sophisticated method that was developed by Stanford researcher John Chowning during the 1970s, which required precise mathematical parameter adjustments in order to shape and mold sounds effectively.

FM synthesis fundamentally differed from the established method of analog subtractive synthesis, trading traditional oscillators and filters for complex algorithms that stacked and modulated digital operators—essentially sine-wave generators—thereby creating intricate, metallic timbres that were previously unattainable. The architecture of the DX7 hinged on the use of two custom-designed chips: the YM21280 (OPS) was dedicated to generating FM operators, while the YM21290 (EGS) focused on envelope shaping; together, these components enabled the synthesizer to produce its signature bell-like tones and sharp electric piano sounds. Although the technical complexity of the synthesizer intimidated many potential users, its presets—consisting of 128 factory-loaded sounds—quickly became instant staples, frequently heard on tracks ranging from Brian Eno’s ambient masterpieces to Whitney Houston’s popular ballads. Eno, in particular, embraced the potential of the DX7, utilizing its otherworldly textures on albums such as Apollo: Atmospheres and Soundtracks and sharing patch instructions in various music magazines to encourage other musicians to explore its capabilities.

Features

Delving deeper into its inner workings, the innovation of the DX7 lay in its remarkable digital precision. Unlike traditional analog synthesizers, where tuning drift and unstable circuits could lead to alterations in sounds between different sessions, the parameters of the DX7 were stored as numerical values, thus ensuring that patches sounded identical each and every time they were recalled. The feedback mechanism—where the output of an operator modulated its own frequency in subsequent cycles—allowed for the creation of evolving, harmonically rich tones, although programming these sounds required navigating through a labyrinth of nested menus via a small LED screen and membrane buttons that could prove frustrating. Musicians praised the velocity-sensitive keyboard, which adeptly translated playing dynamics into nuanced changes in volume and timbre, a feature that was quite rare in polyphonic synthesizers of the era.

The synthesizer’s 16-note polyphony and 32 algorithms—preconfigured operator routings—offered musicians a high degree of flexibility; however, the learning curve associated with mastering it was notably steep. Programming original sounds meant deciphering abstract parameters such as “operator ratios” and “modulation indices,” tasks that often felt more akin to algebra than the joyous process of music-making. Consequently, most users found themselves relying heavily on the presets, which included emulations of instruments like marimbas, bass guitars, and the infamous “Lately Bass” that became synonymous with countless 1980s pop tracks. The DX7’s portability, weighing in at 22 pounds, made it significantly lighter than many analog counterparts, and its MIDI compatibility established it as a studio workhorse, although its plasticky build quality and lack of real-time controls drew criticism from purists who preferred a more tactile experience.

Popularity and Legacy

Despite its quirks and challenges, the DX7 evolved into a commercial juggernaut, selling over 200,000 units by 1986 and making its presence felt on numerous hits by artists such as A-ha, Phil Collins, and Michael Jackson. Its electric piano preset, known as “E.Piano 1,” played a defining role in shaping the sound of 1980s ballads, while its crystalline bells and metallic pads seeped seamlessly into film scores and the expansive realm of new-age music. The synthesizer’s affordability—priced at around $2,000 at the time of its launch, which was half the cost of high-end analog synthesizers—rendered it accessible to both home studios and touring musicians; however, its overwhelming presence eventually led to a backlash among some musicians. By the 1990s, the digital sheen of the DX7 was deemed outdated, and secondhand units could be found selling for a fraction of their original price as analog synthesizers regained favor among music producers.

Nevertheless, the DX7 never completely faded from the music scene. Hip-hop producers scoured thrift stores in search of its gritty bass patches, while electronic artists such as Aphex Twin repurposed its unique tones for glitchy, experimental tracks that pushed the boundaries of sound. The 2000s marked a resurgence of interest in FM synthesis, driven by software emulations such as Native Instruments’ FM8 and the open-source Dexed plugin, which successfully replicated the architecture of the DX7 without the complications associated with hardware. Today, the synthesizer is celebrated for its pivotal role in democratizing digital music production, even as its interface serves as a cautionary tale regarding the delicate balance between technical capability and user-friendliness.

Video Reviews and Commercials

The Yamaha DX7 was an innovative synthesizer, but expensive. Yamaha created the DX9 as a more affordable alternative, removing two operators and eliminating velocity and aftertouch. Despite similar electronic circuitry and a gritty sound, the DX9 has limited patch compatibility compared to later DX models. The synth’s potential depends on the user’s creativity and sound processing.

Availability and Collectability

Original DX7 units have now become highly sought after by collectors and retro enthusiasts alike, with prices ranging from $500 to $1,500, depending significantly on the condition of the instrument. Early models, such as the DX7 II FD that featured floppy disk storage, command even higher premiums; however, the aging components—including crackling potentiometers and failing key contacts—often necessitate maintenance and repair. Online forums buzz with a wealth of repair tips, ranging from replacing brittle plastic battery holders to troubleshooting the synthesizer’s notorious “dead key” issue, a flaw that is typically caused by worn-out rubber contacts located beneath the keyboard. Parts for the DX7 remain relatively accessible, thanks to its mass production, but restoration can become a do-it-yourself project for those who are truly committed to preserving this iconic instrument.

In comparison to vintage analog synthesizers such as the Minimoog or Juno-106, the DX7 occupies a middle ground within the collector’s market—neither as coveted as rare analog gear nor as affordable as later digital synthesizers. Its true value lies in its historical significance and unique sound palette, which even modern software still struggles to replicate perfectly. For hobbyists, the heft and retro charm of the DX7 make it an engaging conversation piece, while working musicians often choose to pair it with contemporary MIDI controllers in order to bypass its somewhat stiff keyboard. As is the case with many iconic instruments from the 1980s, the resurgence of the DX7 serves as both a nostalgic nod to the past and a testament to its enduring, albeit divisive, sonic footprint in the world of music.
